| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ISO9001 |
| Model Number: | Opgw Cable |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | 4KM/Drum |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000KM Per Day |

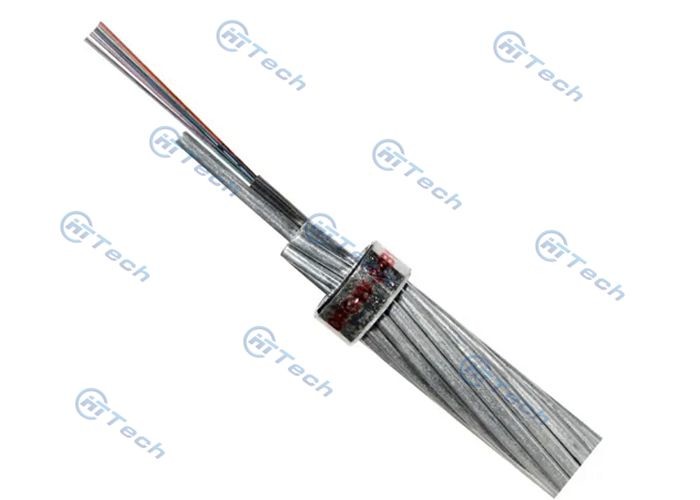

| Name: | 48 Core Opgw Fiber Optic Cable | Model NO.: | OPGW |
|---|---|---|---|
| Cores: | 0-48 Cores | Warranty: | 10Years |
| Highlight: | Opgw 48 Core Optic Cable,Optical Fiber Opgw Cable |
||
The main products of our enterprise
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
| Technical data: | ||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15.0 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 |
||||||
