| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ISO9001 |
| Model Number: | GCYFTY |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | 4KM/Drum |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000KM Per Day |
| Name: | Black 6~72 Cores Blown Micro Fiber Optic Cable HDPE Outer Jacket | Model NO.: | GCYFTY |
|---|---|---|---|
| Sheath Material: | Length According To Requirement Fiber Cores | Cores: | 6-72 Cores |
| Warranty: | 2Years | Outer Jacket: | HDPE |
| Highlight: | fiber optic ethernet cable,indoor outdoor fiber cable |
||

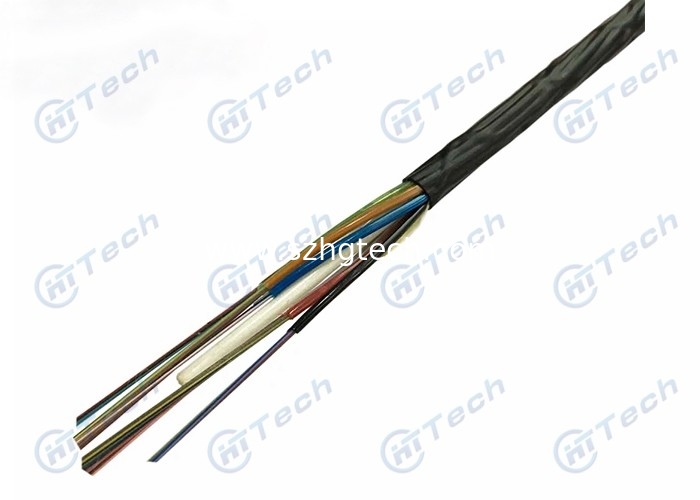

Black 6~72 Cores Blown Micro Fiber Optic Cable HDPE Outer Jacket
All Dielectric Self Supported Central Loose Tube Outdoor Optical Cable ADSS
Features
. through up to 72 fibers for 6 mm ID micro-ducts
. Small diameter, lightweight and low friction sheath design
. stranding design allows for easy mid-span access and isolates
fibers from installation and environmental rigors
. HDPE as outer sheath for increased blowing distance and fast.
. Ripcord added for easier sheath removal.
. Fiber options: SM (G652D, G657A), MM (OM1, OM2, OM3 & OM4)
. Higher fiber count cable designs are available on request.
Cable Technical Parameters
| ITEM | Value |
| Fiber count | 6~72 Cores |
| Tube count | Up to 6 |
| Cable OD | 6.0±0.3mm |
| Loose tube OD | 1.65±0.05mm |
| Max. Tensile(Short term) | 600N |
| Max. Tensile(Long term) | 300N |
| Max. Crushing Resistance(Short term) | 1000N/100 mm |
| Max. Crushing Resistance(Long term) | 300N/100 mm |
| Sheath Material | Standard: HDPE. Optional: PE |
| Min. Bending Radius(Dynamic) | 20D |
| Min. Bending Radius(Static) | 10D |
| Strength Member | 1.6mm FRP |
| Standard Jacket Color | Black |
| Environmental Protection | RoHS COMPLIANT |
| Storage Temperature | -40~70ºC |
| Operation Temperature | -40~70ºC |
| Installation Temperature | 0 ~ 50ºC |
ANSI/TIA/EIA-598-B Standard Fiber Color Code
Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.
