| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ROHS,ISO9001 |
| Model Number: | MPO Fiber Jumper |
| Minimum Order Quantity: | 10pcs |
| Packaging Details: | 1pc/PE Bag |
| Delivery Time: | 3-5working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000pcs Per Day |
| Products: | Female Type 10Gb MPO Fiber Jumper MTP MPO-LC Fiber Patch Cord | Manufacturer: | Yes |
|---|---|---|---|
| Fiber Type: | OM3 | Test: | 100% Test Before Shipping |
| Connector Type: | SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO | Samples: | Support |
| Highlight: | mpo patch cord,mpo patch cord |
||

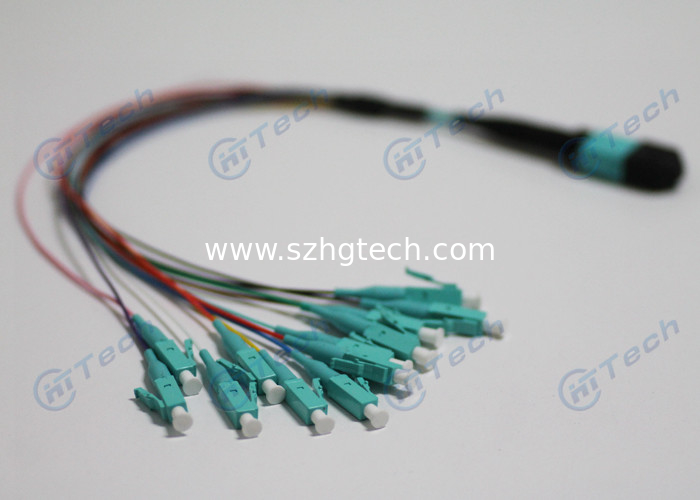

Female Type 10Gb MPO Fiber Jumper MTP MPO-LC Fiber Patch Cord
Feature:
(1) Inner: CCTC Ceramic Ferrule
(2) Telcordia’s GR-326-Core, IEC Standard
(3) Green Production, RoHS Standard
(4) Excellent Polished and 100% tested.
(5) High stability various environments
(6) Customize order available
The MPO MTP fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
Items Details:
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| Connector | Mode | Endface | IL(dB) | RL(dB) | IL(dB) | RL(dB) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | ||
Available :
8Cores, 12Cores, 16Cores,24Cores patch cord available
Fan-out available
Pigtail available
Various boot(cable) sizes available
MTP/MPO connectors available
LSZH and PVC cable
1. Jacket Material:
2. Customize Cable Length: 0.5M/1M/2M/3M/5M to 100M
3..Packing:
