| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | CE, ROHS |
| Model Number: | SC Fiber Optic Adapter |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | 25pcs Per Plastic Plant |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, Western Union, MoneyGram, T/T |
| Name: | SC Apc Simplex Fiber Optic Adapter | Color: | Green, Blue, Red, Gray, Blue /Beige /Green |
|---|---|---|---|
| Type: | Single Mode/ Multi-mode | Insertion Loss: | IL<0.2db |
| Test: | 100% Test Before Shipping | Sleeve Material: | Ceramic |
| Housing Material: | ABS |

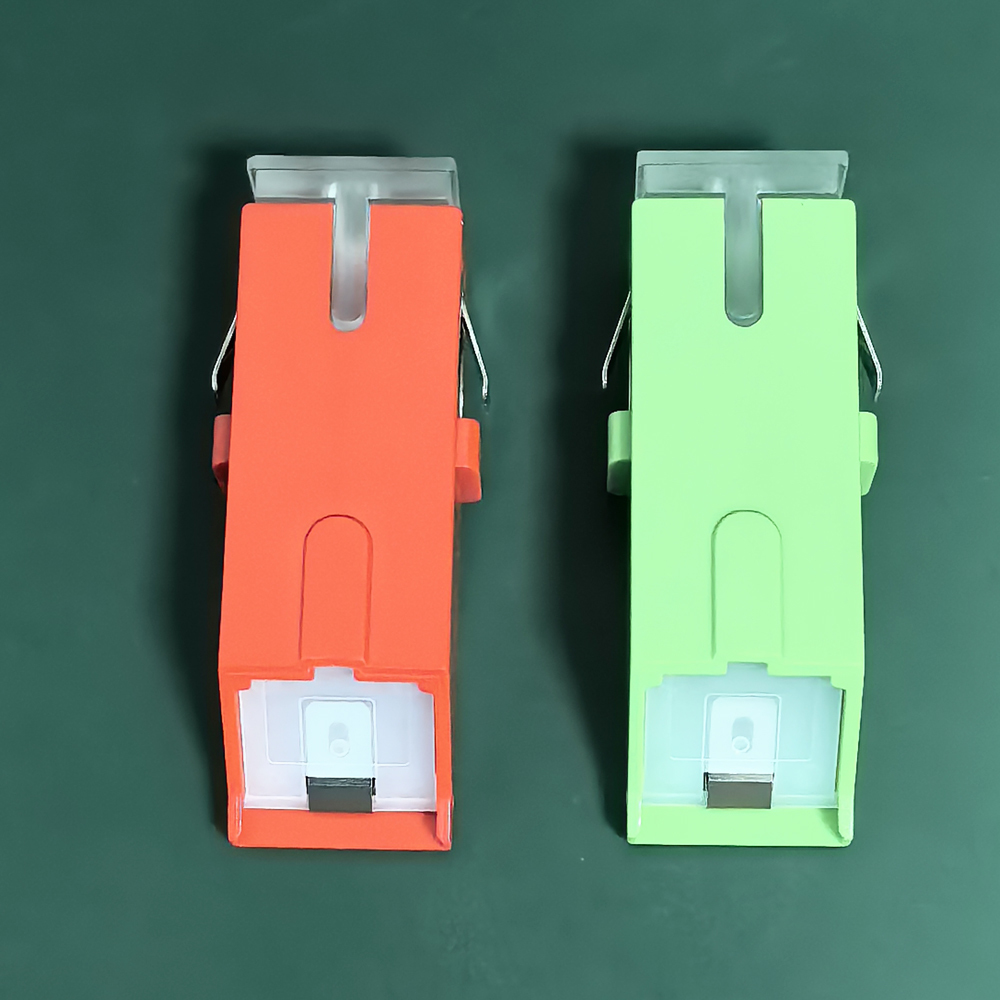

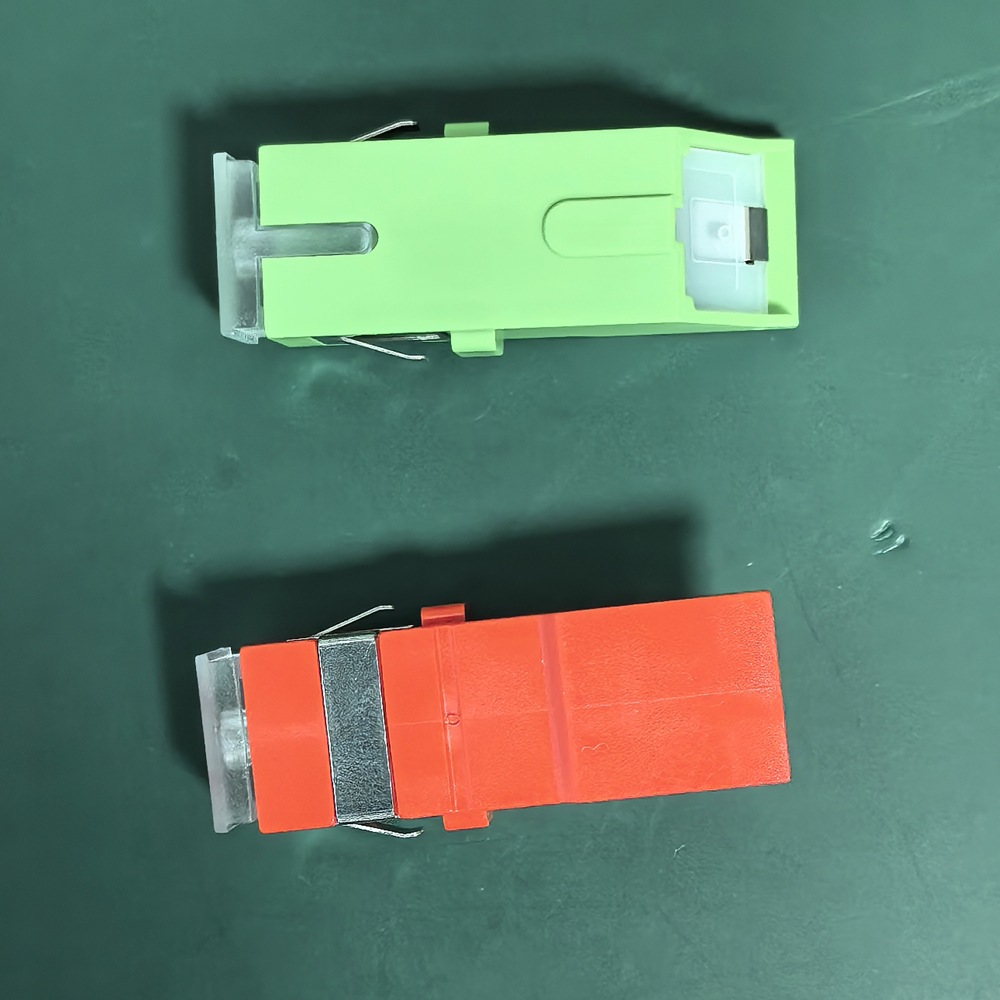

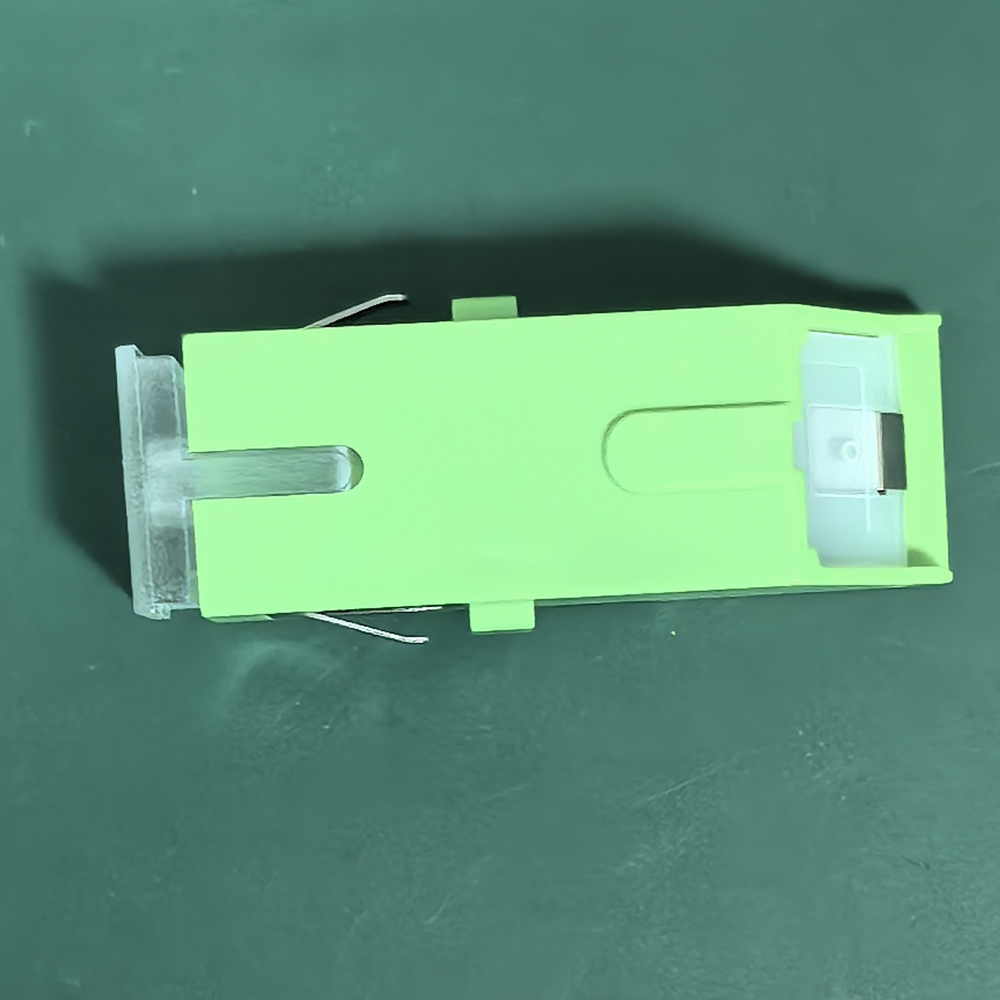

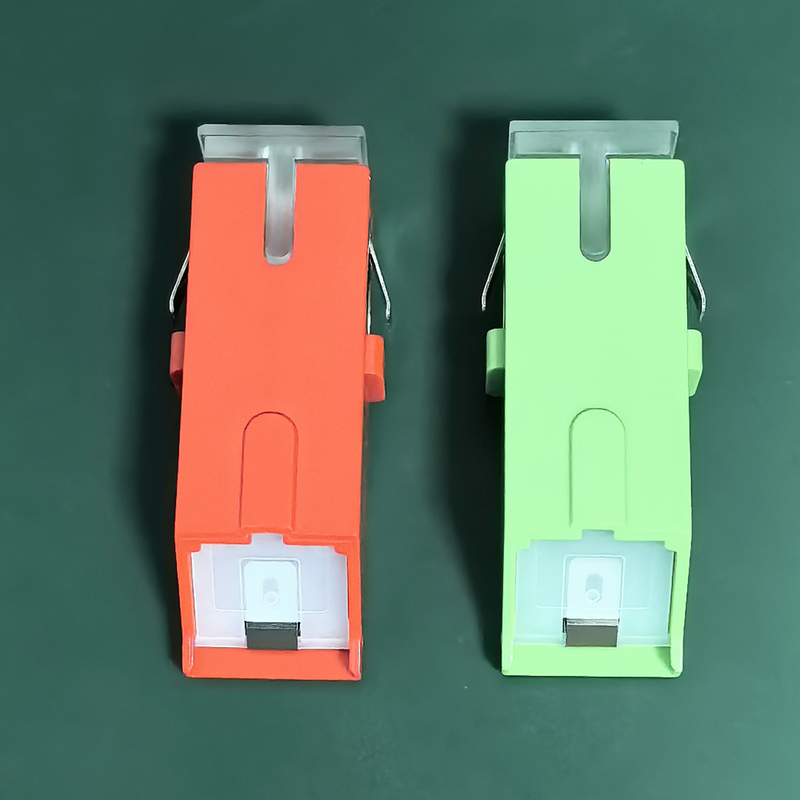

SC apc Simplex Fiber Optic Adapter With Spring Cover
Features
1. Fiber optic adapter SC PC / APC
2. Apply for CATV, LAN, Telecom network, test equipment, SC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Simplex / Duplex
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)
Applications
CATV
Telecom network
Optical test equipment
Local area networks
Wide area networks
Data processing Networks
Specifications
| Item | Insertion Loss |
Mechanical resistance |
Repeatability |
Operating Temperature |
| SM/PC | ≤0.2dB | 200-600g | 0.1dB(1000times) | -40°C~+80°C |
| SM/APC | ≤0.2dB | 200-600g | 0.1dB(1000times) | -40°C~+80°C |
| MM/PC | ≤0.3dB | 200-600g | 0.2dB(1000times) |
-40°C~+80°C |
