| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ROHS,ISO9001 |
| Model Number: | SC Patch Cord |
| Minimum Order Quantity: | 10pcs |
| Packaging Details: | 1pc/PE Bag |
| Delivery Time: | 3-5working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000pcs Per Day |
| Products: | Single Mode SC Apc To SC Upc Fiber Optic Patch Cord Simplex Yellow Color | Manufacturer: | Yes |
|---|---|---|---|
| Insertion Loss: | ≤0.3dB | Quality: | IEC Standard |
| Test: | 100% Test Before Shipping | Samples: | Support |
| Fiber Type: | Simplex And Duplex,G652D | ||
| Highlight: | armored fiber optic patch cable,optical fiber patch cord |
||

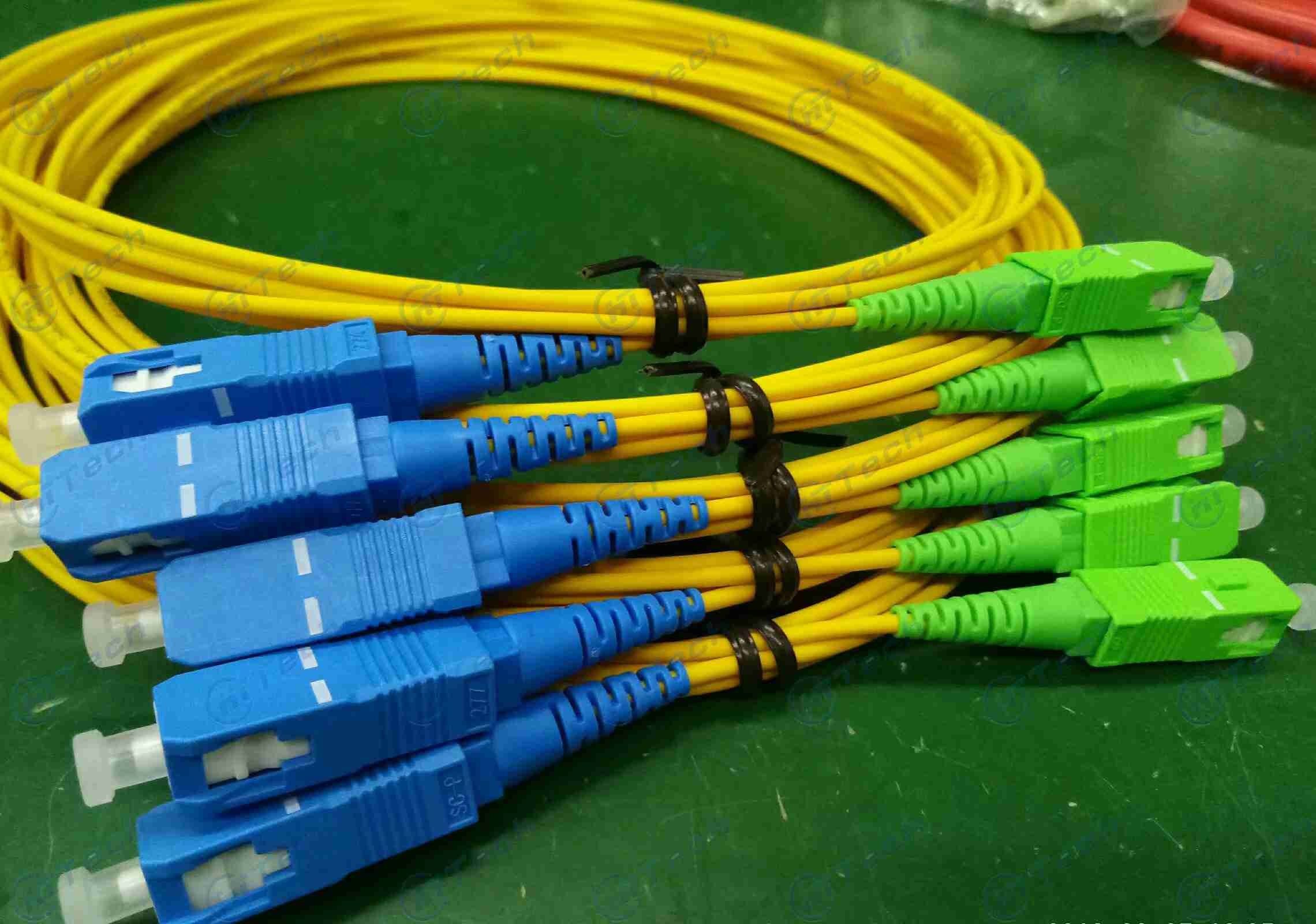

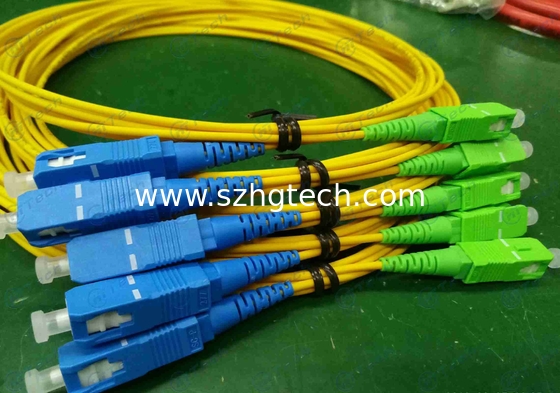

Single Mode SC apc To SC upc Fiber Optic Patch Cord Simplex Yellow Color
HG provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.The Singlemode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality.
Specification:
| Fiber Optic Patch Cord / Fiber Optic Pigtail | |||
| Feature: (1) Inner: Ceramic Ferrule (2) IEC Standard (3) Green Production, RoHS Standard (4) Excellent Polished and 100% tested. (5) High stability various environments (6) Customize order available |
Mode | SM | MM |
| Polish | UPC | PC | |
| Insertion Loss | Typical ≤0.2dB | ≤0.3dB | |
| Maximum ≤0.3dB | |||
| Return Loss | ≥50dB (UPC),≥60dB (APC) | ≥35dB | |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times) | ||
| Vibration | ≤0.2dB (550Hz 1.5mm) | ||
| Tensile Strength | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Our Advantage:
(1) Manufacturer
(2) 1pc MOQ
(3) Zero-Defects QA Program
(4) High Quality Materials
(5) Advanced Equipment & Tooling
(6) In-house Engineering
(7) Expert Technical Support
(8) 100% Product Testing
(9) 100% Product Guarantee
(10) Fast Turn Around
(11) Same-Day Manufacturing Available
