| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ROHS,ISO9001 |
| Model Number: | ST Fiber Optic Adapter |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | 25pcs Per Plastic Plant |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, Western Union, MoneyGram, T/T |
| Name: | ST To ST Fiber Coupler | Warranty: | 10 Years |
|---|---|---|---|
| Type: | Single Mode/ Multi-mode | Insertion Loss: | IL<0.2db |
| Test: | 100% Test Before Shipping | Sleeve Material: | Ceramic |
| Housing Material: | Metal | ||
| Highlight: | fiber cable adapters,fiber optic cable adapter |
||

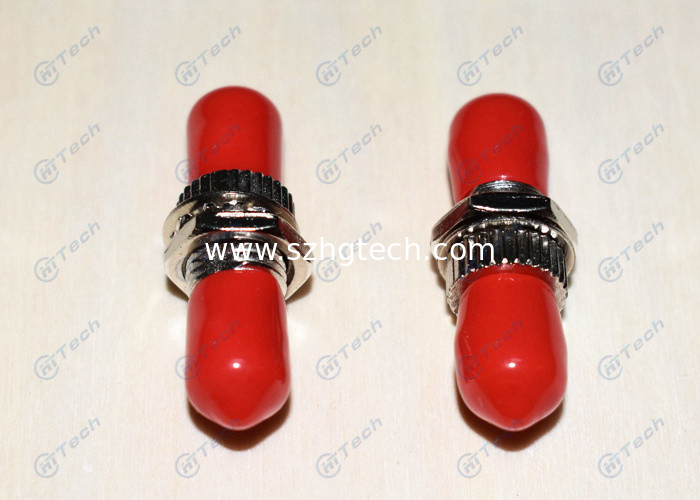

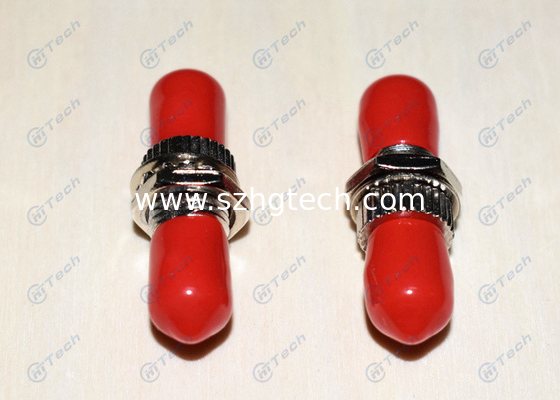

Ceramic Sleeve Metal Housing Simplex ST Fiber Optic Adapter Telecom Type
Features
1. Fiber optic adapter ST
2. Apply for CATV, LAN, Telecom network, test equipment, SC connectors
3. Multimode or Single Mode
4. Simplex / Duplex
5. Ceramic sleeve, Metal housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
Applications
CATV
Telecom network
Optical test equipment
Local area networks
Wide area networks
Data processing Networks
Specifications
| Item | Insertion Loss |
Mechanical resistance |
Repeatability |
Operating Temperature |
| SM/PC | ≤0.2dB | 200-600g | 0.1dB(1000times) | -40°C~+80°C |
| SM/APC | ≤0.2dB | 200-600g | 0.1dB(1000times) | -40°C~+80°C |
| MM/PC | ≤0.3dB | 200-600g | 0.2dB(1000times) |
-40°C~+80°C |
