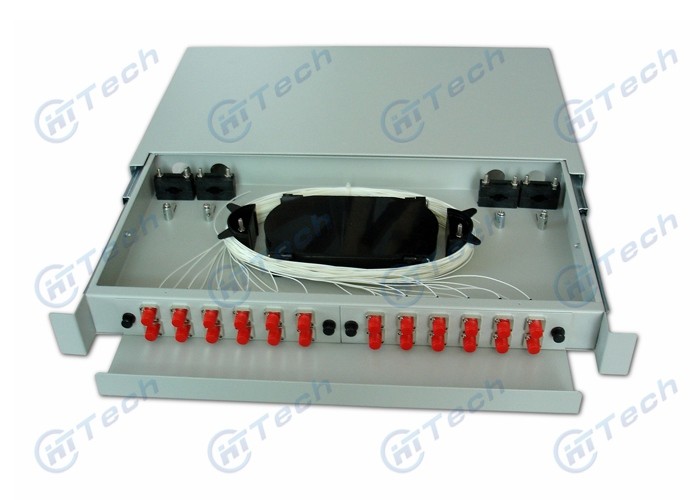

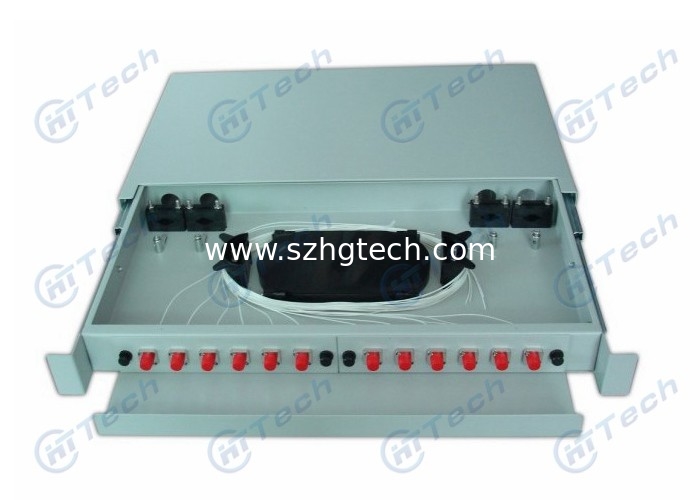

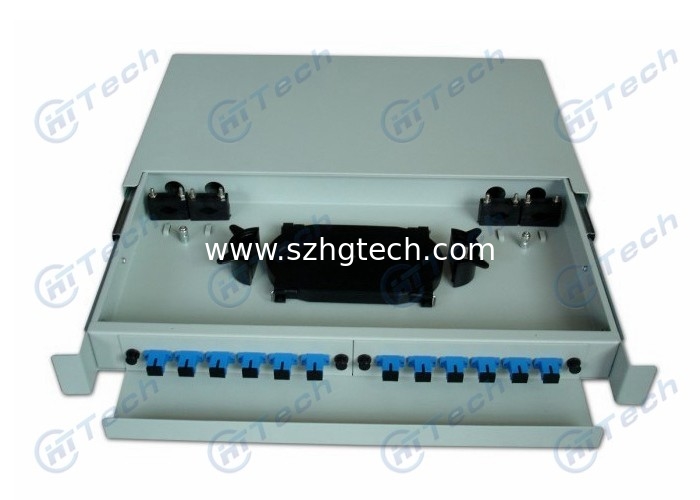

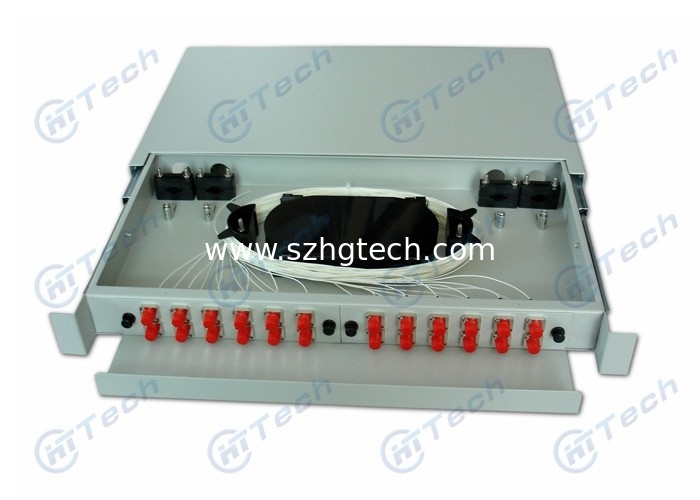

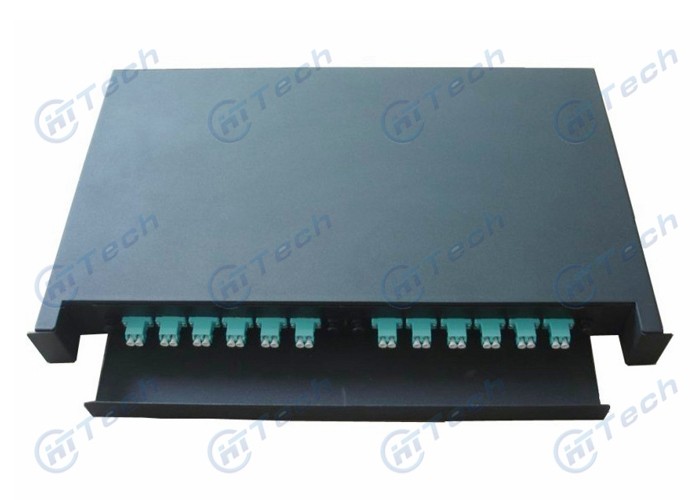

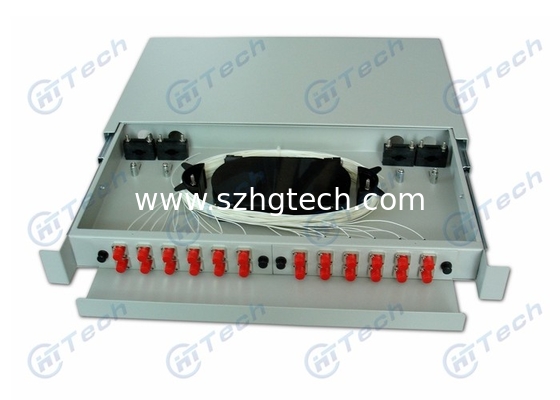

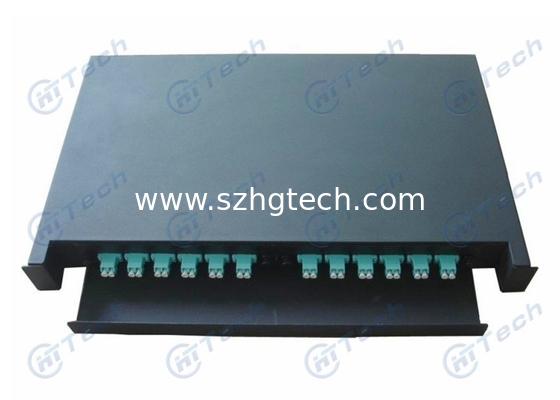

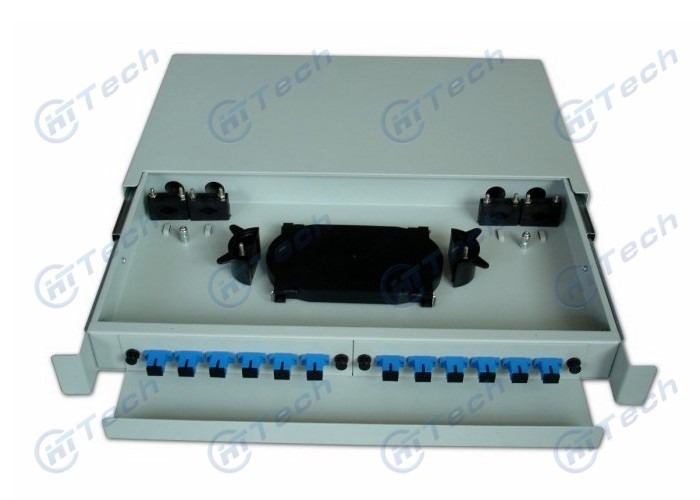

24 Core LC Rack Mount Fiber Patch Panel Slidable Type For Ribbon And Single Fiber

Basic Information
Place of Origin: China
Brand Name: HG or OEM
Certification: ISO9001
Model Number: FPP-RS24
Minimum Order Quantity: 50pcs
Packaging Details: 1pcs /Box
Delivery Time: 5-7working days after deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs Per Week
Products: 24 Core LC Adapter Slidable Type Rackmount Fiber Optic Patch Panel Material: Cold-rolling Steel
Product Name: FTTH 12 24 48 96 144 Port Fiber Optic Patch Panel/ODF Color: Black,white
Application: FTTH FTTB FTTX Network,Telecom Type: Rotary Type Fiber Optic Path Panel
Highlight:

fiber distribution panel

,

optical patch panel

24 Core LC Adapter Slidable Type Rackmount Fiber Optic Patch Panel

fiber optic distribution box is designed for Slidable Rack-mount.It has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.





Features:

  • Standard size, light weight and reasonable structure
  • Slide out drawer for easy cable management
  • Suitable for ribbon and single fiber
  • Compact design for space saving
  • Various panel plate to fit different adapter interface
  • Front mark on the plate is easy for identification and operation
  • Easy for management and operation

Application:

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV



Order information:

Model Fiber Quantity Height Dimension(cm) Weight(Kg)
FPP-RS12 12 1U 45x 32x4.45 4
FPP-RS24 24 1U 45x 32x4.45 4.2
FPP-RS48 48 2U 48x32x8.9 4.31
FPP-RS96 96 2.5U 48x32x11 5.05
