| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ISO9001 |
| Model Number: | HG-PPR-1U48HG-PPR-1U48 |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pcs /Box |
| Delivery Time: | 5-7working days after deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs Per Week |
| Name: | Fiber Optic Patch Panel | Material: | Cold-rolling Steel |
|---|---|---|---|
| Product Name: | FTTH 12 24 48 96 144 Port Fiber Optic Patch Panel/ODF | Color: | Black,white |
| Application: | FTTH FTTB FTTX Network,Telecom | Type: | Rotary Type Fiber Optic Path Panel |
| Highlight: | fiber distribution panel,fiber termination panel |
||

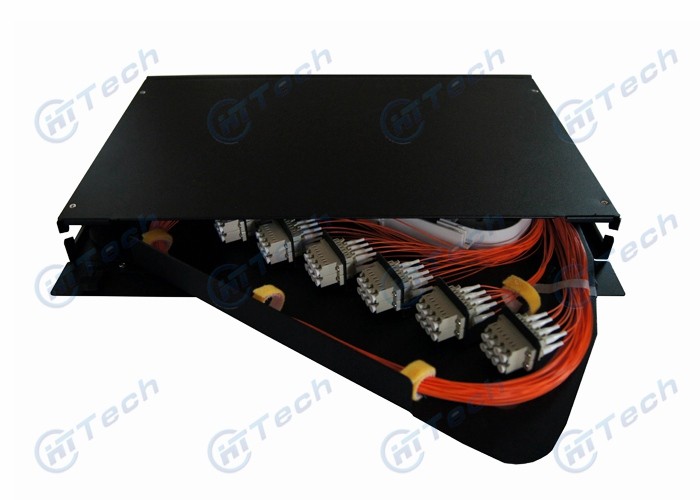

HG-PPR-1U48 1U 48 Cores Rotary Fiber Optic Patch Panel
It is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
Standard size, can be rackmount and wallmount
Splice tray inside changeable
Can be used in 19'', 23'' standard distribution frame
Suitable for ribbon and single fiber
Various panel plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
Specification:
Model: HG-PPR-1U48
Material: Cold-roll steel
ABS material splice tray
2pcs splice trays; each splice tray 24cores
Dimension: 483*290*44.4mm
Capacity: 48 cores
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
