| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | ISO9001 |
| Model Number: | HG-PPRFC |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pcs /Box |
| Delivery Time: | 5-7working days after deposit |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs Per Week |
| Name: | White Color Rotary Type 24 Port Fiber Optic Patch Panel FC Type | Color: | Black,white |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network,Telecom | Type: | Draw Type Fiber Optic Path Panel |
| Material: | Cold-rolling Steel | Cold-rolling Steel: | 1.0mm Or 1.2mm |
| Highlight: | fiber distribution panel,fiber termination panel |
||

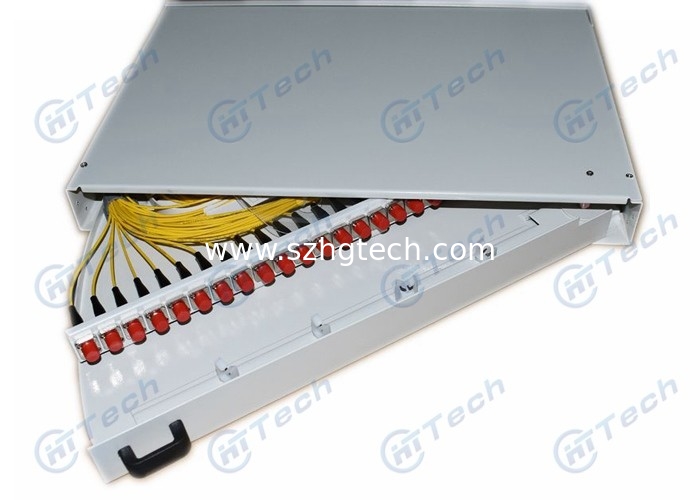

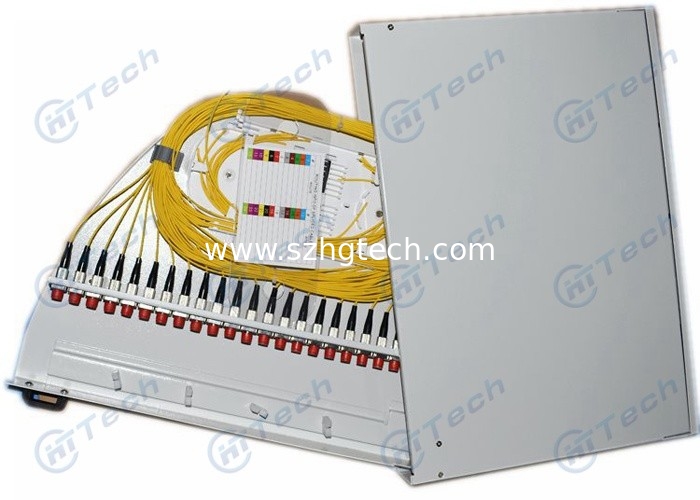

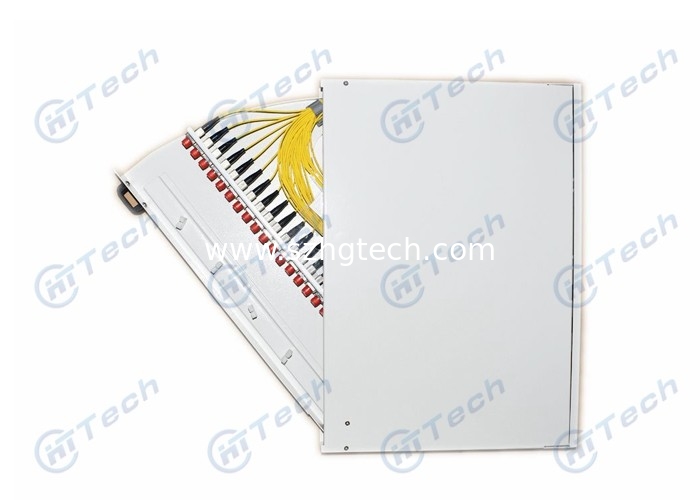

White Color Rotary Type 24 Port Fiber Optic Patch Panel FC Type
Features and Advantages
1. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
2. The box has a pothook, which is convenient to install and dismantle
3. The splice tray could be piled one upon another, flexible to turn
4. curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
5. The box is of unique structure, reasonable layout, and has adequate room for operation
6. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
7. The indoor type is of excellent seal performance, which could prevent water from entering effectively
8. With pigtail outlet
9. Up to 24 cores splice capacity
10. It can be installed on the wall and in the cabinet
Applications
1. Applicable in the straight through or branch connection of indoor optical cable
2. Used for wire distribution and end connection of various optical fiber system
3. Fit for wall mounted
Dimension: (H x W x D)mm: 430x300x1U
