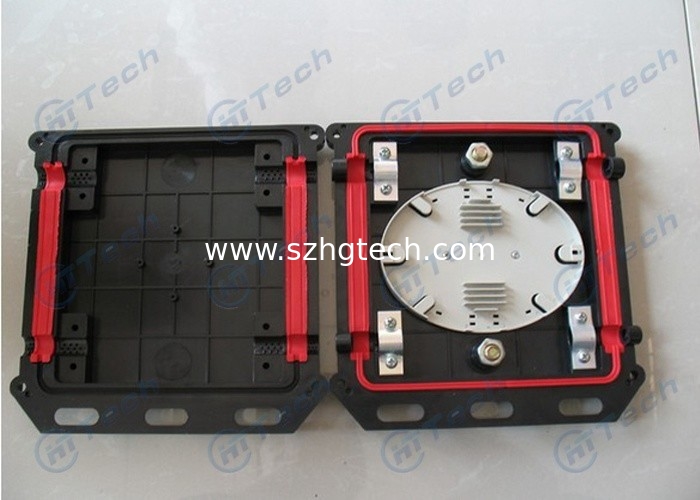

Mini Fiber Optic Joint Enclosure 12 Cores With Strong Bad Weather Resistance Capacity

Features:

• Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.
• Made of material with good capability of outdoor environment resistance and high durability
• Having reliable cable fixing and grounding facilities.
• Using self-adhesive isolative tape and glue belt to seal.
• To use rotating method to connect fiber organizer cassette result in easy installation.
• Mechanical design suitable for installing, fiber splicing storage and cable connection
• Compact and tight.
• Up to 4 separate cable ports

Main Technical Parameters

• Applicable environment temperatures: -10℃~+70℃
• Air pressure: 70~106Kpa
• Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
• Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)
• Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70℃ for 100 hours
• Insulation resistance≥2×104MΩ, resistance to 1.5KV/min without break down

1, Body of the closure(including fiber trays, supporting frame and cable fixing frame)
2, Hose clamps
3, Sandpaper
4, Marking note
5, Fiber melting protection tube
6, Block
7, Optic fiber cable supporting ring
8, Naked fiber protection tube
9, Self-adhesive cincture(widen)
10, Self-adhesive cincture(narrow)
11, Strapping tape
12, Aerial buckle
13, PVC tape
