| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | iso9001 |
| Model Number: | CV017 |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pc/box |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | Fiber Optic Cable Joint Box | Material: | PP Materials With UV |
|---|---|---|---|
| Cable Port: | 6 Round Port | Max. Capacity: | 144Fiber |
| IP: | IP68 | Warranty: | 5 Years |
| Highlight: | fiber joint box,fiber optic cable joint box |
||
48 96 144 fibers Optical Splitter Joint Box Dome Fiber Optic Splice Closure

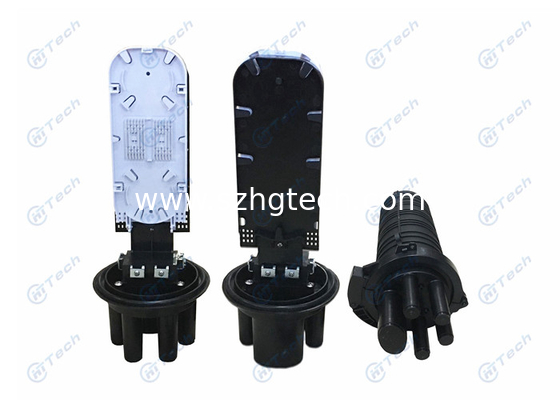

CV017 288 Fibers Dome Fiber Optic Splice Closure
Specification:

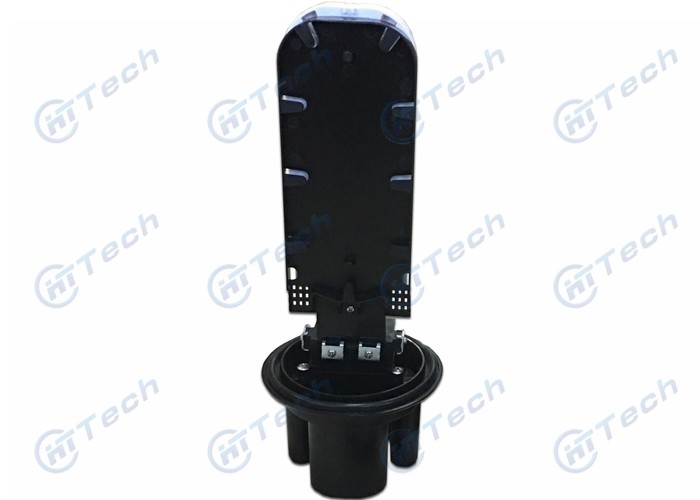

1) Splice tray: Max. 5pcs, each 24cores

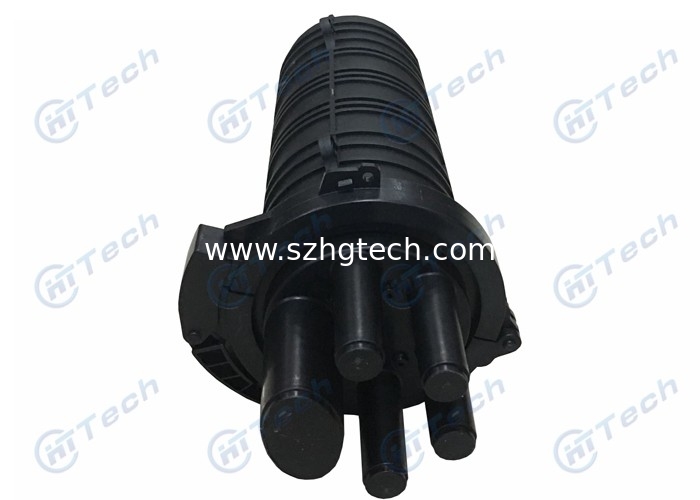

2) Cable port: 4pcs round port φ20mm, 1pc oval port for supporting cable entry without cutting. All cable ports are heat shrink sealing.
3) Waterproof: IP68
4) Wall-mounting, aerial hanger and pole-mount,buried
5) Material: outer shell use high impact resistance PP materials with UV.Inside structure use ABS plastic
| Model | Splice tray | Fiber core | Dimension(mm) | Net weight(Kg) |
| CV017 | 5 trays, each 24 fibers | 120 fibers | Φ168× 433.5 | 3.31 |
Accessories:
| Item | name | Specification | unit | Qty(pcs) | remark |
| 1 | tube | D=Ф4mm thickness 0.6mm,white | M | 2 | |
| 2 | Cable splitter | Size:S | PCS | 1 | |
| 3 | Silver pater | 15cm*10cm(with adhesive) | PCS | 1 | |
| 4 | Heat shrinkable tube | Ф30*100mm/black | PCS | 4 | |
| 5 | Heat shrinkable tube | Ф60*150mm/black | PCS | 1 | |
| 6 | Plastic cable tie | 3mm*120mm/white | PCS | 5 | |
| 7 | Splice protect sleeve | 60MM*3.0*1.5 | PCS | / | As per fiber qty |
| 8 | Insulating tape | 0.15*17mm*8 /black | PCS | 1 | |
| 9 | Magic tape | 350MM*15MM*3MM/black | PCS | 1 | |
| 10 | Abrasive paper | 320#(280*60mm) | PCS | 1 | |
| 11 | Aerial kits | 201 stainless steel | sets | 1 |
