| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | iso9001 |
| Model Number: | CV016 |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pc/box |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Products: | 288 Core Optical Fiber Cable Joint Closure Dome Splice Closure | Material: | PP Materials With UV |
|---|---|---|---|
| Cable Port: | 6 Round Port | Max. Capacity: | 288Fiber |
| IP: | IP68 | Warranty: | 5 Years |
| Highlight: | fiber optic splice case,fiber optic cable joint box |
||

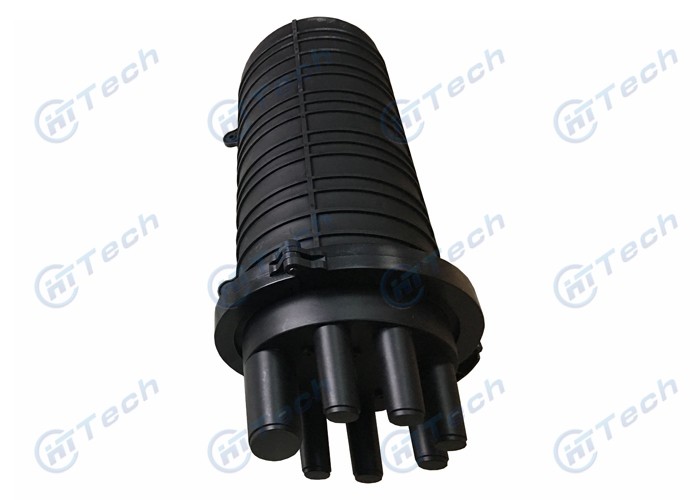

CV016 288 Fibers Dome Fiber Optic Splice Closure
Features:

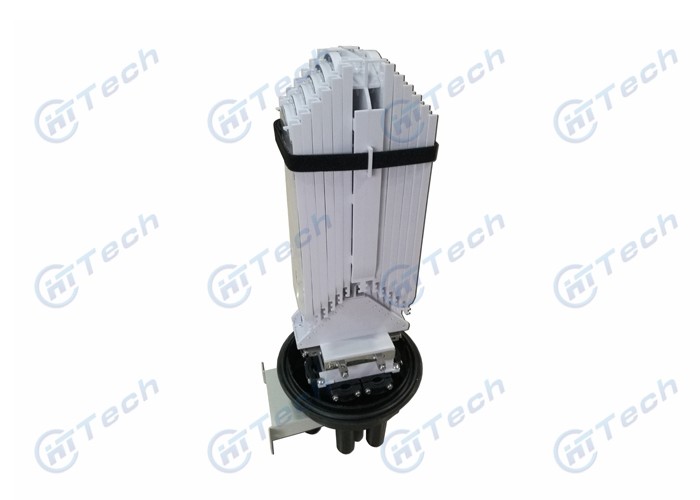

1) Splice tray: Max. 12pcs, each 24cores
2) Cable port: 6pcs round port φ19.9mm, 1pc oval port 38x70mm for supporting cable entry without cutting. All cable ports are heat shrink sealing.
3) Waterproof: IP68
4) Wall-mounting, aerial hanger and pole holding
5) Material: high impact resistance PP materials with UV
Specification:
| Model | Splice tray | Fiber core | Dimension(mm) | Net weight(Kg) |
| CV016 | 12 trays, each 24 fibers | 288 fibers | Φ228 × 527.5 | 3.31 |
Drawing:
