| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | iso9001 |
| Model Number: | CV015 |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pc/box |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | Outdoor Fiber Enclosure | Material: | PP Materials With UV |
|---|---|---|---|
| Cable Port: | 4 Round Port | Max. Capacity: | 144Fiber |
| IP: | IP68 | Warranty: | 5 Years |
| Highlight: | fiber joint box,fiber optic splice case |
||

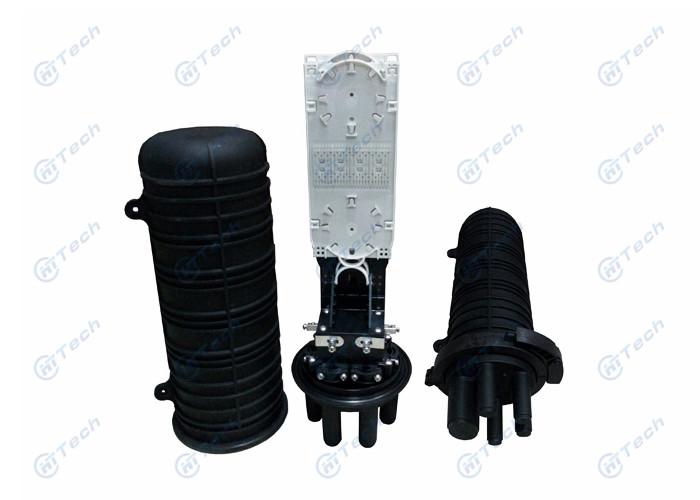

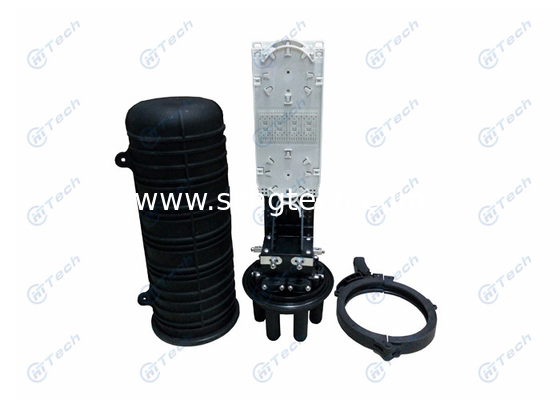

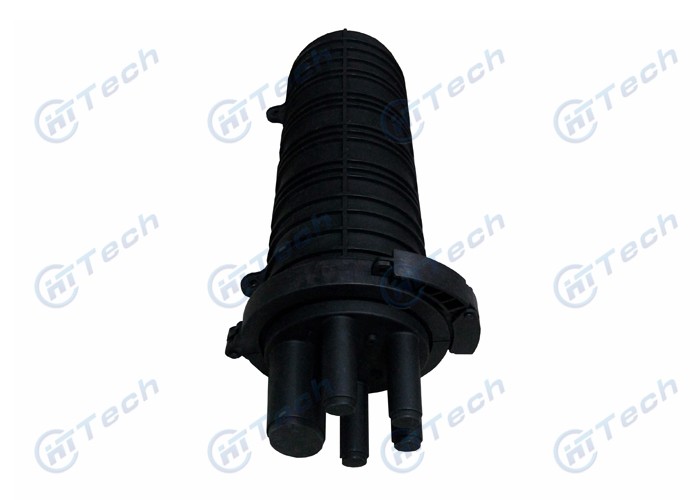

CV015 144 Fibers Dome Fiber Optic Splice Closure
Feature:
1) Splice tray: Max. 6pcs, each 24cores
2) Cable port: 4pcs round port φ20mm, 1pc ellipse port for supporting cable entry without cutting. All cable ports are heat shrink sealing.
3) Waterproof: IP68
4) Wall-mounting, aerial hanger and pole holding
5) Material: high impact resistance PP materials with UV
Specification:
| Model | Max. capacity | Dimension | Material | Splice tray |
| CV015 | 144 fibers | φ182.5 x 509.1 mm | PP | 6pcs, 24 fibers |
Drawing:
