| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | iso9001 |
| Model Number: | CV013 |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 1pc/box |
| Delivery Time: | 5-7working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Name: | FTTH Junction Box | Material: | PP Materials With UV |
|---|---|---|---|
| Cable Port: | 4 Round Port | Max. Capacity: | 120 Fiber |
| IP: | IP68 | Warranty: | 5 Years |
| Highlight: | fiber optic splice case,fiber optic cable joint box |
||
96 Cores FTTH Junction Box Dome Fiber Optic Joint Enclosure 96Cores
Description:

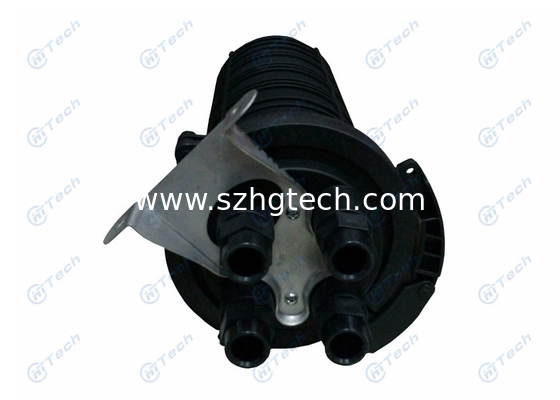

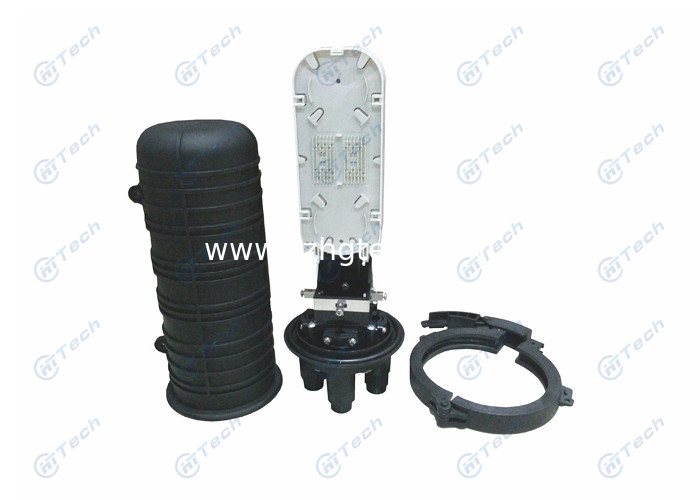

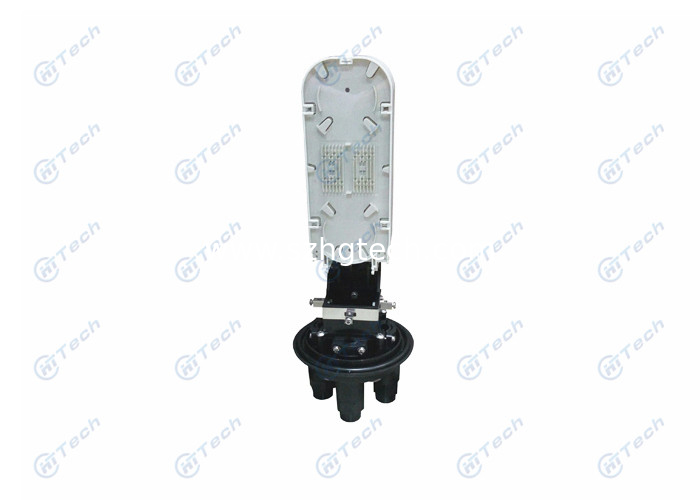

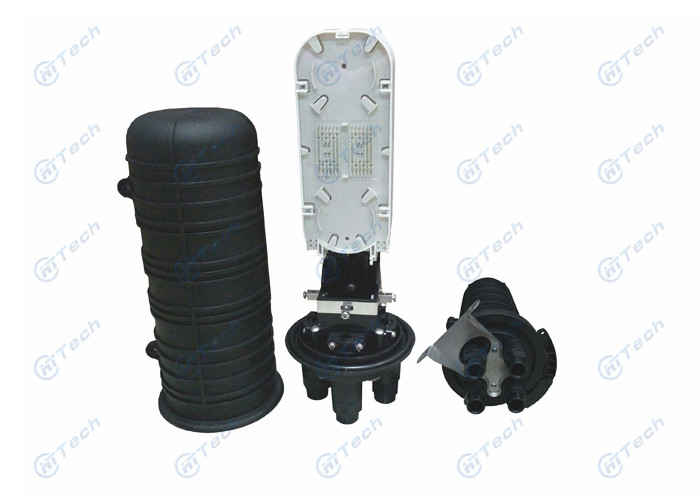

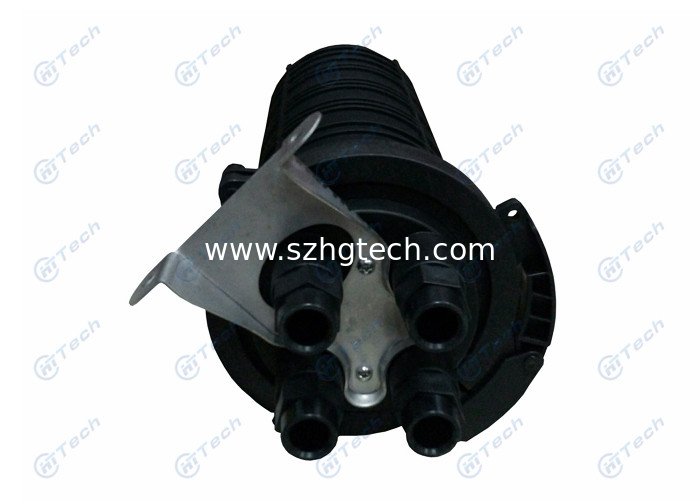

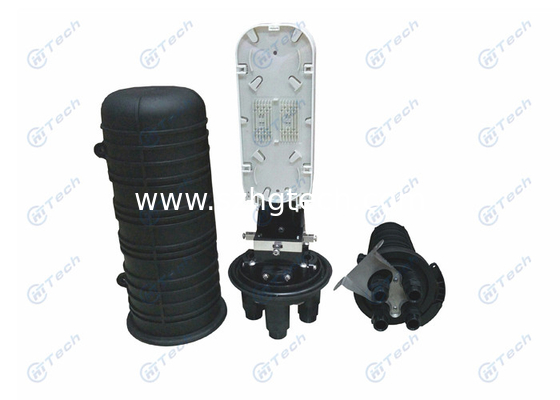

CV013 is a dome type fiber optic splice closure that used for optical fiber cable splicing and protection.
Feature:
1) Splice tray: Max. 5pcs, each 24cores
2) Cable port: 4pcs round port, φ18mm, mechanical sealing
3) Waterproof: IP68
4) Wall-mounting, aerial hanger and pole holding
5) Material: high impact resistance PP materials with UV
Specification:
| Model | Material | Dimension | Max.capacity | Splice tray |
| CV013 | PP | Φ168 × 424.5 mm | 120 fibers | 5pcs, each 24 fibers |
