| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | CE, ROHS |
| Model Number: | LC Fiber Attenuator 10dB |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | 25pcs Per Plastic Plant |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, Western Union, MoneyGram, T/T |
| Name: | Fiber Optic Attenuator | Warranty: | 10 Years |
|---|---|---|---|
| Color: | Green, Blue, | Type: | Single Mode/ Multi-mode |
| Test: | 100% Test Before Shipping | Sleeve Material: | Ceramic |
| Highlight: | single mode attenuator,optical fiber attenuator |
||

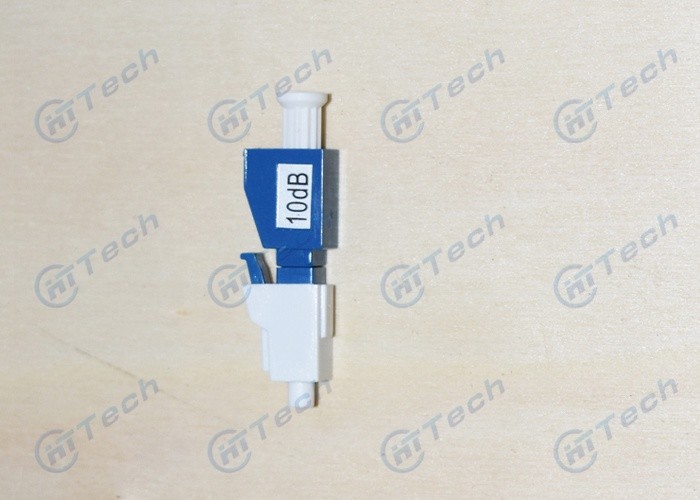

Singlemode LC Fiber Optic Attenuator 10dB LC Optical Attenuator
Specifications
1. Stable performance;
2. Low attenuation error,high return loss;
3. Bellcore standare
4, easy to operate
Features
1) High precision.
2) Good stability.
3) Small size and bulk.
4) Easy to operate.
5) Based on IEC/Telcordia Bell GR-326-Core Tested.
6) Optional adapter: SM/MM, Simplex/Duplex
7) 100% Optic test(Insertion loss ≤0.20dB)
Application
Fiber optic communication systems.
Fiber optic CATV
Fiber optic test
Specification:
| Attenuation value | 1, 3, 5, 10, 15, 20,25 dB |
| Attenuation precision | <5dB±0.3dB <10dB±1dB >10dB±10% |
| Return loss | PC>45dB APC>60dB |
| Operation wavelength | 1310nm and 1550nm(SM) |
| Polarization loss | <0.1dB |
| Operation temperature | -40℃ ~ +75℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Temperature(Unencapsulation) | 95%RH Apply Telecordia standard(GR-910-CORE) |
