| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | CE,ROHS, ISO9001 |
| Model Number: | FC Fiber Optic Quick Connector |
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | 10pcs/plastic box |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10K pcs Per Day |
| Name: | FC Fiber Connector | Insertion Loss: | IL<0.5db |
|---|---|---|---|
| Color: | Black Color | Mode: | Singlemode,Multimode |
| Application: | FTTH FTTB FTTX Network | Warranty: | 3 Years |
| Highlight: | fiber cable connector,ftth fast connector |
||

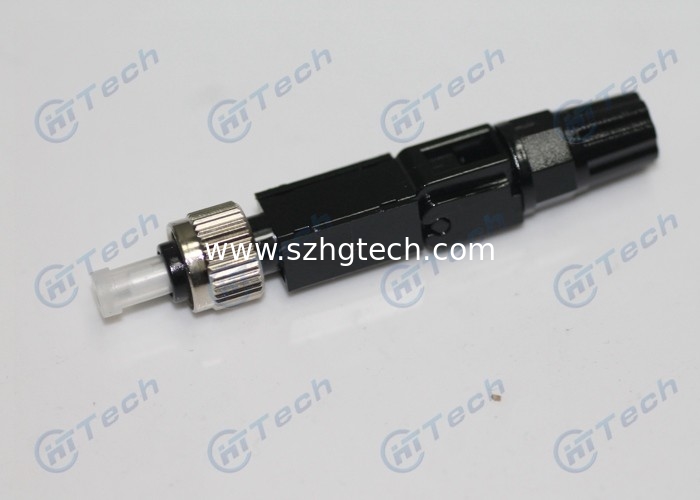

FTTH Field Quick Assembly Singlemode FC Fiber Optic Quick Connector
Features
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE
Application
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH
5. Field word
Technical parameter
| Category | Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
| High TEMP | 110℃,200H | ≤0.5 | ≤5 |
No mechanical damage like deformation, cracking and untight
|
| Low TEMP | -40℃,200H | ≤0.5 | ≤5 | |
| TEMP Cycling | -40~85℃,3.5H/Cle,100C | ≤0.5 | ≤5 | |
| HAST | 110℃,90%RH,200H | ≤0.5 | ≤5 | |
| Immersion | 25℃,200H | ≤0.5 | ≤5 | |
| Salt Mist | 5% Nacl,6.5 | ≤0.5 | ≤5 | |
