| Place of Origin: | China |
|---|---|
| Brand Name: | HG or OEM |
| Certification: | CE, ROHS, ISO9001 |
| Model Number: | FDB-104C |
| Minimum Order Quantity: | 10pcs |
| Packaging Details: | 1pc/Box |
| Delivery Time: | 5-7 days |
| Name: | 4Cores Fiber Optic Splitter Box | Material: | ABS |
|---|---|---|---|
| Type: | Distribution Box 4ports | Warranty: | 5 Years |
| Highlight: | ftth termination box,ftth distribution box |
||

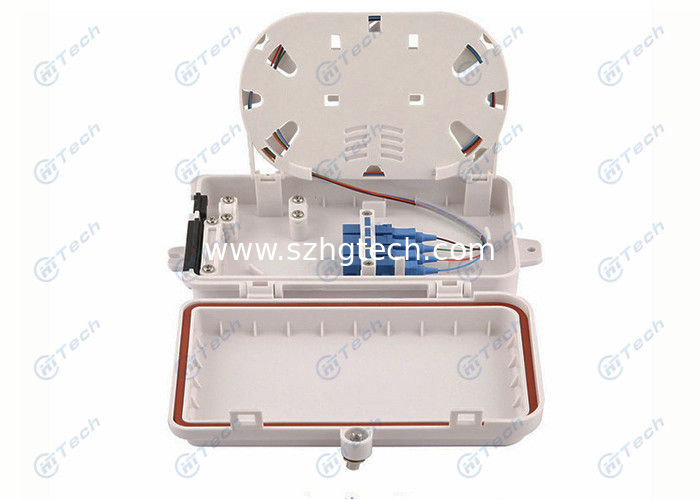

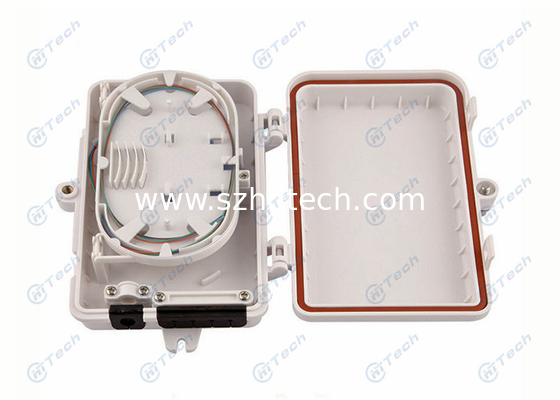

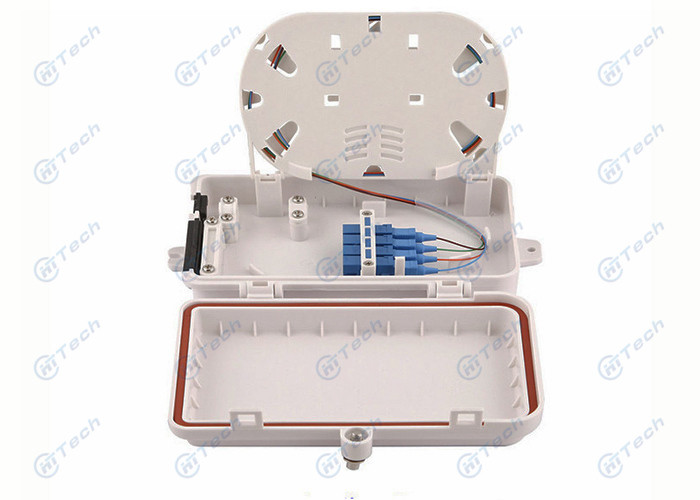

Indoor FTTH 4Cores Fiber Optic Splitter Box SC UPC ABS Material
Introduction:
FTTH Mini type terminal box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails; Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively. Available for 1*2/1*4 PLC Splitter, 1x6 FBT Splitter, also can be used to splicing 6fibers max.
Features:
1.1 FTTH network and CATV system application.
1.2 Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.
1.3 Suit for both Outdoor & Indoor. IP65 Grade.
1.4 Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.
1.4 Light weight, small cubage, small installation size,realiable sealing.
1.5 Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice
1.6 The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.
Cable port:
Could be connected 1 inlet ports, 6 outlet ports.
Cable diameter(mm): φ7~φ10
Main Technical Indexes:
2.1 Environmental Temperature:-40°C~60°C;
2.2 Max capacity: 6 fibers;
2.3 Application for outdoor, IP65 grade
2.4 Material: High impact plastic.
Dimension:
| Model | Capacity | Size(mm) | Weight (kg) |
| FTB-104C | 4 ports | 210(W)X140(H)x40(D) |
0.45 |
